How to Choose a Reliable Partner of PCB Manufacturing and Assembly for Communication in 2026

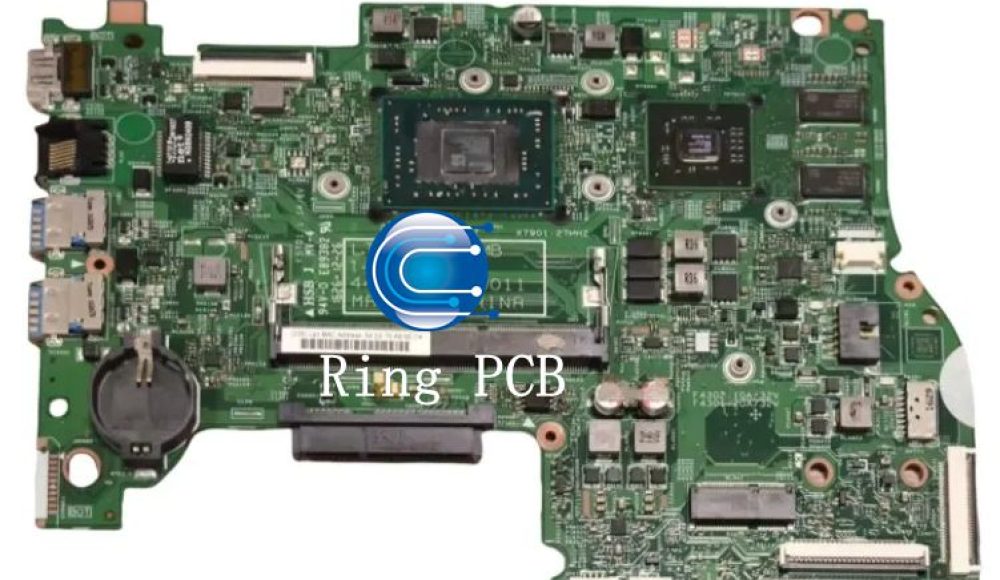

communication device PCBA

Introduction

Against the backdrop of large-scale commercial deployment of 5G-A and iterative upgrading of 1.6T high-speed optical modules in 2026, selecting a reliable partner of PCB manufacturing and assembly for communication has become a top priority for communication equipment manufacturers, optical module brands and data center solution providers. A qualified partner of PCB manufacturing and assembly for communication can stabilize signal performance, shorten R&D cycles and cut long-term supply chain costs, while an unqualified supplier will trigger batch signal loss, delayed delivery and frequent after-sales maintenance losses. Industry data reveals that over 63% of communication hardware procurement failures in 2026 stem from blind selection of unprofessional partner of PCB manufacturing and assembly for communication without comprehensive qualification and process verification. Every evaluation dimension when screening a partner of PCB manufacturing and assembly for communication directly determines the stability of your 5G base station, millimeter wave communication and high-speed transmission product supply chain. For procurement engineers and hardware developers, mastering standardized selection standards of a partner of PCB manufacturing and assembly for communication is the premise to avoid huge project risks.
PCBA testing

1. Verify Complete Industry Certifications Tailored for Communication PCB Projects

The first screening standard for a trustworthy partner of PCB manufacturing and assembly for communication is a full set of industry certifications matching communication high-frequency products. General PCB factories only hold basic ISO9001 certificates, while a professional partner of PCB manufacturing and assembly for communication must own IATF16949, UL, ISO14001 and high-frequency material test qualification documents. For millimeter wave base station and 1.6T optical module PCBs, the partner of PCB manufacturing and assembly for communication needs to provide Dk/Df substrate test reports, impedance consistency certification and IPC Class 3 reliability authorization at the same time.

Without these targeted credentials, the circuit boards produced cannot pass overseas customs inspection and third-party communication equipment performance testing. Formal partner of PCB manufacturing and assembly for communication will archive all certification files and provide them to customers for free DFM audit at the prototype stage, which effectively eliminates compliance risks for cross-border communication brands.

2. Inspect Production Processes & Equipment for High-Speed Communication Circuit Boards

Advanced production hardware and mature precision processes are the core hard strength of a qualified partner of PCB manufacturing and assembly for communication. Ordinary manufacturers only equip traditional subtractive etching lines, while premium partner of PCB manufacturing and assembly for communication deploy LDI laser imaging, mSAP ultra-fine circuit technology and UV microvia laser drilling equipment to meet the miniaturization demand of high-speed communication PCBs.
In 2026, mainstream communication hardware requires 15–40μm ultra-fine wiring and ±2% impedance tolerance; only standardized partner of PCB manufacturing and assembly for communication with full vacuum lamination and plasma desmear machines can control interlayer alignment errors within 75μm. You can request factory video tours or on-site audits to check the operation status of high-frequency PCB dedicated production lines of your potential partner of PCB manufacturing and assembly for communication, to avoid suppliers outsourcing communication board orders to small foundries with backward processes.

3. Audit Full Signal Integrity & Reliability Testing Capacity

Complete testing systems distinguish a professional partner of PCB manufacturing and assembly for communication from ordinary circuit board suppliers. Consumer electronics PCB factories only conduct simple open-short tests, while a dedicated partner of PCB manufacturing and assembly for communication must configure insertion loss testers, impedance scanners, thermal cycling aging chambers and salt spray testing equipment.

Communication high-speed boards operate under high-frequency and high-temperature conditions for a long time; the partner of PCB manufacturing and assembly for communication needs to finish full signal integrity scanning and multi-cycle reliability aging before delivery. Reputable partner of PCB manufacturing and assembly for communication can provide batch test reports with serial number traceability, which helps customers quickly locate abnormal signal faults after PCBA assembly and equipment assembly. Suppliers lacking independent testing workshops will lead to high defective rates of finished communication products, raising after-sales labor and material costs.

4. Evaluate Turnkey PCBA One-Stop Service Capability

Integrated PCB fabrication, component sourcing and SMT assembly capacity is a critical evaluation index for a long-term partner of PCB manufacturing and assembly for communication. Separately cooperating with PCB factories and assembly vendors will cause inconsistent process standards and unclear responsibility division when signal defects occur. A mature partner of PCB manufacturing and assembly for communication integrates bare board production, authorized component procurement, high-precision BGA reflow welding and X-Ray void inspection under one quality control system.

This full turnkey mode greatly reduces communication costs for communication purchasers, and the partner of PCB manufacturing and assembly for communication delivers finished communication PCBA that can be directly installed into base stations, optical transceivers and switches. In 2026, more than 70% medium and large communication enterprises prefer one-stop partner of PCB manufacturing and assembly for communication to simplify their global supply chain layout and reduce inventory pressure.

5. Assess Flexible MOQ, Delivery Cycle & Technical After-Sales Support

Stable delivery and responsive technical support are soft strengths that cannot be ignored when picking a partner of PCB manufacturing and assembly for communication. Many small circuit board factories set ultra-high minimum order quantities, which blocks communication brand’s prototype trial production demand. Reliable partner of PCB manufacturing and assembly for communication supports small-batch prototype orders and mass scalable production, with fast prototype delivery within 3–5 working days.

In addition, the technical team of the partner of PCB manufacturing and assembly for communication should offer free DFM design review before production, proactively optimizing stack-up, differential pair layout and grounding structure to reduce signal attenuation risks. Timely after-sales response mechanism is also essential: formal partner of PCB manufacturing and assembly for communication arranges dedicated project managers to track every communication PCB order, solving technical and quality problems within 24 hours to prevent project schedule delays.

Ring PCB: Your End-to-End PCB & PCBA Manufacturing Service Since 2008

Conclusion

To select a stable partner of PCB manufacturing and assembly for communication in 2026, buyers need to comprehensively assess five core dimensions: communication-oriented complete certifications, high-precision production equipment and processes, full signal integrity testing capacity, integrated turnkey PCBA service, and flexible order policy with professional technical support. As 5G-A and 6G pre-research continuously boost the technical threshold of communication circuit boards, only standardized, fully certified manufacturers can sustain long-term cooperation with global communication brands.
If you are searching for a trusted partner of PCB manufacturing and assembly for communication, RingPCB, established in 2008, runs an automated factory specialized in communication high-frequency PCB and full turnkey PCBA solutions. We own complete communication industry certifications, advanced mSAP & LDI production lines, independent signal testing labs, support fast prototypes and mass production for optical modules, 5G small cells and data center communication equipment. Send your Gerber files, BOM and project demands to rfq@ringpcb.com for free DFM analysis and tailored quotation. Visit our official site https://www.ringpcb.com to browse communication PCB project cases and factory equipment introduction.
