What Is a Multilayer PCB?

A multilayer PCB (Printed Circuit Board) is composed of three or more conductive copper layers laminated together with insulating materials. Compared with single-sided or double-sided boards, multilayer PCB manufacturing enables higher circuit density, improved signal integrity, and more compact electronic designs.

What is 48-layer PCB?

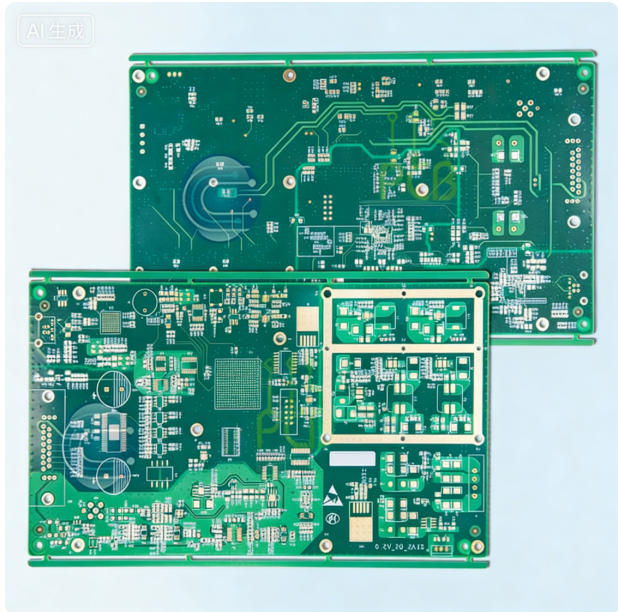

The multilayer PCB shown in the image is a customized solution manufactured for a customer project, presented for reference to demonstrate Ring PCB’s multilayer PCB manufacturing capabilities.

10-Layer ENIG Multilayer PCB Manufacturing with Impedance Control

The PCB shown above is a custom 10-layer ENIG multilayer PCB manufactured for a customer requiring high-density routing and precise impedance control for advanced electronic systems.

This high-performance 10-layer PCB manufacturing solution is designed for complex circuit integration, controlled signal transmission, and reliable multilayer stack-up performance. With advanced fabrication technology and strict process control, our multilayer PCB manufacturing ensures electrical stability, durability, and production consistency.

At Ring PCB, we specialize in 10-layer PCB manufacturing and PCB assembly services, offering one-stop PCB and PCBA solutions for industrial, communication, medical, and high-tech applications.

What Is a 10-Layer Multilayer PCB?

A 10-layer PCB consists of multiple copper layers laminated together to support:

• High component density

• Complex signal routing

• Power and ground plane separation

• Controlled impedance design

• EMI shielding

Compared to standard double-sided boards, 10-layer PCB manufacturing enables more stable signal transmission and better noise suppression, making it ideal for advanced electronic devices.

Key Features & Advantages

1️⃣ High-Density Routing Capability

Our 10-layer PCB manufacturing supports fine trace width/spacing down to 0.1mm / 0.17mm, enabling compact layouts for complex circuit designs.

2️⃣ ENIG Surface Finish

The ENIG (Electroless Nickel Immersion Gold) finish provides excellent solderability, flatness, and corrosion resistance, ensuring reliable PCB assembly performance.

3️⃣ Controlled Impedance Technology

Impedance control is critical for high-speed signal transmission. Our advanced multilayer PCB manufacturing ensures accurate impedance matching and signal integrity.

4️⃣ Strong Structural Stability

With an aspect ratio of 8.75:1, this 10-layer PCB maintains mechanical strength while supporting dense via structures.

5️⃣ One-Stop PCB & PCBA Service

We provide integrated 10-layer PCB manufacturing and full turnkey PCB assembly services, including fabrication, component sourcing, SMT assembly, testing, and quality control.

Technical Challenges in 10-Layer PCB Manufacturing

Producing a 10-layer multilayer PCB requires:

• Precise lamination alignment

• Accurate layer registration

• Controlled drilling and plating

• Stable copper thickness management

• Reliable impedance modeling

Our engineering team performs detailed DFM (Design for Manufacturability) analysis to optimize yield and performance before mass production.

Typical Technical Parameters

Note: The above parameters are for reference only. Specific design requirements and technical details should be confirmed with our professional engineering team.

Applications

This 10-layer PCB manufacturing solution is widely used in:

• Industrial control systems

• Communication equipment

• Medical electronics

• Automotive control modules

• Power management systems

One-Stop Printed Circuit Board & Assembly Services

Ring PCB provides customized printed circuit board fabrication and PCB assembly services for various industries. We offer:

• Multilayer PCB manufacturing

• High-speed PCB fabrication

• SMT & through-hole assembly

• Component sourcing

• Functional testing

• Full turnkey PCBA and EMS solutions

Founded in 2008, Ring PCB has 18 years of industry experience in PCB manufacturing and PCB assembly. We operate approximately 10,000 square meters of modern self-operated factories in Shenzhen and Zhuhai with 500 skilled employees.

All PCB and PCBA products comply with international standards including ISO9001, ISO14001, ISO13485, and IATF16949.

We support:

• 3-day rapid prototyping

• 7-day mass production

• Flexible order quantities

• Export to over 50 countries

Our one-stop PCB and PCBA service ensures stable quality, controlled lead time, and scalable production support.

FAQ

Q1: What is the advantage of a 10-layer PCB over a 4-layer PCB?

A 10-layer PCB provides better signal isolation, controlled impedance routing, and higher component density for complex systems.

Q2: Do you provide full turnkey assembly services?

Yes. We offer full turnkey PCB assembly services including component sourcing, SMT assembly, testing, and quality control.

Q3: Can you support impedance-controlled PCB manufacturing?

Yes. Our 10-layer PCB manufacturing includes impedance modeling and precise process control.

Q4: Do you support rapid prototyping?

Yes. We offer 3-day quick-turn prototypes and 7-day scalable production.

Why Choose Ring PCB?

Ring PCB is a professional PCB and PCB assembly manufacturer with 18 years of industry experience. We operate modern, self-owned manufacturing facilities in Shenzhen and Zhuhai, covering approximately 10,000 square meters, supported by a skilled team of 500 employees.

All PCB and PCBA products comply with international standards, including ISO9001, ISO14001, ISO13485, and IATF16949.
We support 3-day rapid prototyping and 7-day mass production, with products exported to over 50 countries and regions worldwide.

Whether you need multilayer PCB manufacturing or a complete full-turnkey PCBA solution, Ring PCB is your reliable manufacturing partner.
