RingPCB- high Power Module PCBA for LED Lighting Applications with One-Stop PCB & PCBA Services
What Is a Power Module PCBA for LED Lights?

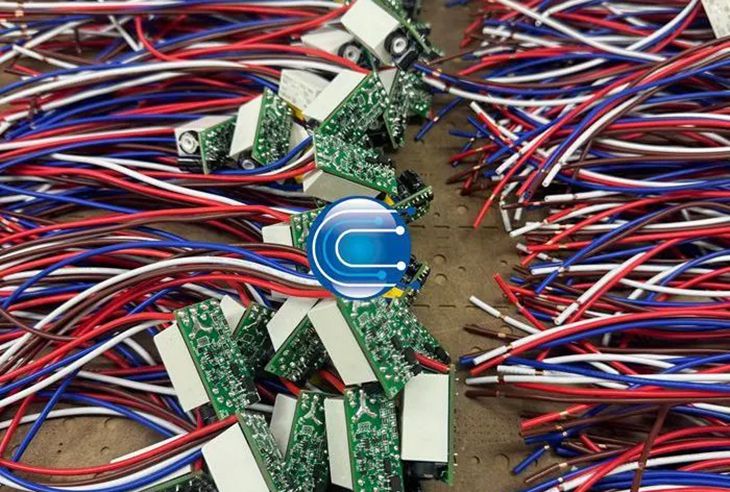

A Power Module PCBA for LED Lights is a fully assembled printed circuit board designed to provide stable power regulation and control for LED lighting systems. It integrates power management components such as control ICs, inductors, capacitors, resistors, and protection circuits onto a PCB, often combined with wire harnesses for direct connection to LED loads and power inputs.
This type of LED power module PCBA is widely used in commercial lighting, industrial lighting, architectural LED systems, and smart lighting applications. Due to continuous operation and strict safety requirements, LED power module PCBAs require reliable manufacturing, consistent quality, and stable performance.
Ring PCB provides customized Power Module PCBA for LED Lights based on customer-provided designs, offering professional One-Stop Service for PCB and PCBA manufacturing and flexible EMS Electronic Manufacturing Services.
Key Features and Advantages
A high-quality Power Module PCBA for LED Lights ensures efficient power delivery and long-term reliability in demanding lighting environments.
Product Features
-
Stable current and voltage output for LED loads
-
High efficiency and low power loss
-
Integrated wire harness for easy installation
-
Compact and modular design
-
Support for constant current or constant voltage LED drivers
Product Advantages
-
Improved LED lifespan and lighting stability
-
Reduced system failure risk
-
Consistent performance under thermal stress
-
Suitable for high-volume production and long-term supply
With advanced PCB fabrication and SMT assembly capabilities, Ring PCB ensures every Power Module PCBA for LED Lights meets strict quality and performance requirements.
Technical Challenges in LED Power Module PCBA Manufacturing
Manufacturing a Power Module PCBA for LED Lights involves several technical challenges that require strong EMS capabilities:
-
Thermal Management: LED power modules operate continuously and generate heat. PCB layout and material selection are critical for heat dissipation.
-
Power Stability: LED lighting requires precise current control to prevent flicker and overcurrent damage.
-
Wire Harness Integration: Stable and consistent soldering of wires is essential for safety and reliability.
-
Production Consistency: High-volume LED applications demand uniform quality across every PCBA.
Ring PCB addresses these challenges through standardized processes, strict quality control, and experienced manufacturing teams.
✅ Technical Challenges and Solutions
RingPCB–Manufacturing multilayer PCBs up to 48 layers requires advanced control of lamination pressure, dielectric thickness, and signal impedance.
Ring PCB’s experienced engineering team ensures:
-
Perfect layer registration and consistent lamination quality
-
Controlled impedance for high-speed and RF applications
-
Excellent thermal management for power and industrial systems
-
High reliability in harsh operating environments
-
Comprehensive testing to guarantee performance and long-term stability
Multilayer PCB Manufacturing for Power Supply
Multilayer PCB Manufacturing: Power and Reliability for Complex Designs
Why Choose Multilayer PCBs for Power Supply?
Multilayer printed circuit boards allow complex circuitry to fit into smaller footprints, offering enhanced performance for high-speed, high-frequency, and high-power applications. They are ideal for power supply designs that require signal stability, precision, and compact design.
✅Technical Specifications
Typical Technical Parameters (For Reference)
The following parameters are for reference only.
Actual specifications can be customized based on customer requirements and application needs.
Please contact our professional sales team for detailed consultation.
| Parameter | Typical Range |
|---|---|
| Input Voltage | AC 90–264V / DC 12–48V |
| Output Type | Constant Current / Constant Voltage |
| Output Power | 5W – 200W |
| PCB Material | FR-4 / High-Tg FR-4 |
| PCB Layers | 2–4 Layers |
| Copper Thickness | 1–2 oz |
| Operating Temperature | -20°C to +85°C |
| Efficiency | Up to 90% |
| Protection Functions | OVP / OCP / SCP / OTP |
| Wire Harness | Customized Length & Connector |
Applications of Power Module PCBA for LED Lights
Ring PCB manufactures Power Module PCBA for LED Lights for a wide range of applications, including:
-
Commercial LED lighting systems
-
Industrial and factory lighting
-
Architectural and decorative LED lighting
-
Smart and connected lighting solutions
-
Outdoor and infrastructure lighting
All products are manufactured strictly according to customer-provided specifications.
Note:
The above specifications are for reference only. Final parameters depend on customer-provided design files and technical requirements.
✅ Why Choose Ring PCB?
-
18 Years of Expertise – Proven experience in multilayer PCB stack-up design and lamination
-
Fully Integrated Factory – PCB fabrication, SMT assembly, and testing under one roof
-
Strict Quality Control – 100% E-testing, AOI inspection, and functional testing
-
Flexible Order Options – From prototype to high-volume production with guaranteed consistency
-
Custom PCB Solutions – Based on customer-provided Gerber files, BOMs, and assembly drawings
-
Certified Manufacturer – UL, ISO9001, ISO14001, ISO13485, IATF16949
-
Compliance with international standards for safety, durability, and performance.
