Product Overview

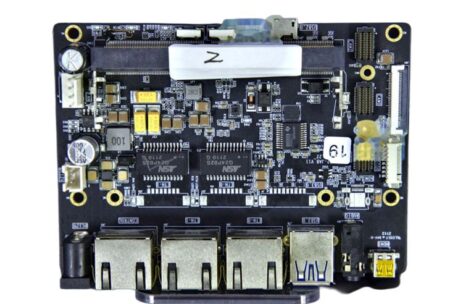

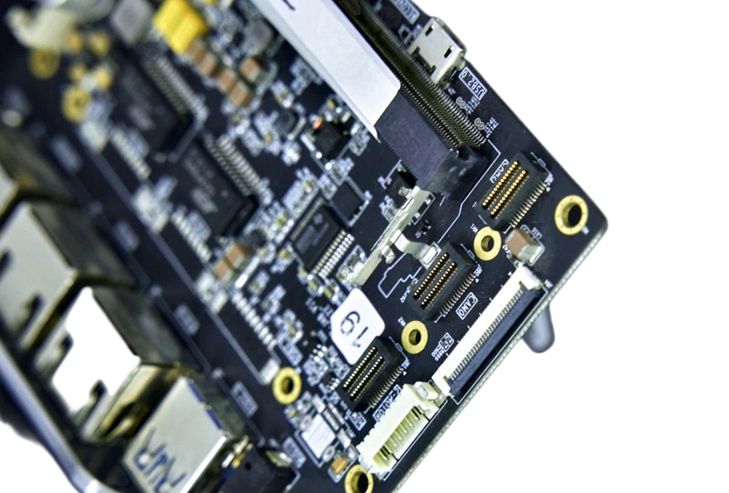

This custom communication PCBA is engineered for stable wired data transmission scenarios, built with multiple Ethernet ports and high-speed interface connectors. Designed for industrial communication gateways and network control hardware, the board integrates signal processing chips, power management circuits and multi-channel data interfaces. It supports continuous operation under fluctuating temperature environments, delivering reliable data transfer for industrial networking, edge computing and embedded communication systems. Ring PCB manufactures custom communication PCBA tailored to customers’ functional requirements from prototype to mass production.
2. Key Features & Advantages
- Multi-port Ethernet design: multiple RJ45 network interfaces for simultaneous multi-node network data exchange
- Integrated high-speed signal processor, supporting stable high-volume data transmission with low packet loss
- Robust power management module with filtering capacitors to suppress voltage fluctuation and electrical noise
- Rich expansion connectors, compatible with external display, serial and peripheral signal modules
- Strict component soldering quality control, optimized for long continuous working hours in industrial environments
- Customizable layout, interface configuration and surface finishing to match different communication hardware projects
3. Technical Challenges for Communication PCBA Manufacturing
Signal crosstalk control is the primary challenge for communication PCBA fabrication. High-speed differential traces need precise routing and impedance control to avoid data distortion during transmission. Besides, the board requires good EMC performance to resist electromagnetic interference in factory environments.
The soldering of dense pin connectors also raises manufacturing requirements. Tiny pads and fine-pitch chips demand accurate stencil design and reflow temperature profile tuning to prevent cold solder joints or short circuits. Moisture resistance and thermal cycling reliability testing are necessary to guarantee stable performance in long-running communication equipment.
4. Technical Parameters
| Item | Specification |
|---|---|
| Application | Industrial communication gateway, embedded network equipment |
| Board Layer | 2–16 layers, customizable |
| Surface Finish | Immersion Gold, HASL, OSP |
| Impedance Control | ±10% (custom impedance available) |
| Working Temperature | -40℃ ~ +85℃ |
| Compliance | RoHS, IPC-A-610 Class 2/3 |
| Interfaces | Ethernet, USB, FFC, GPIO and custom connectors |
Note: These parameters are for reference only. For more details, please consult our professional sales team.
5. FAQ
Q: Can you customize the number of Ethernet ports on this communication PCBA? A: Yes. We can adjust port quantity, interface type and component layout according to your Gerber files and functional requirements.
Q: What reliability tests are available for communication PCBA? A: We provide electrical test, impedance test, thermal cycling test and EMC-related inspection upon request.
Q: What file format do I need to submit for quotation? A: Gerber files, BOM list and assembly drawing are required for technical evaluation and quotation.
