| Place Of Origin: | Shenzhen, China | Certification: | ISO9001, ISO14001, ISO13485, And IATF16949 |
| Type: | IoT PCB Assembly | Layer Count: | 1-40 Layers (standard: 2-16 Layers) |
| Copper Thickness: | 0.5-14 Oz (17.5-490μm); 1-3 Oz Typical For IoT. | Minimum Line/Space: | 2.5/2.5 Mil (0.0635mm) For HDI |
| Material Options: | R-4 (Tg 130-170°C), Rogers RO4003C (Dk=3.38), And Aluminum Cores | Surface Finishes: | ENIG, OSP, HASL (lead-free), And Gold Plating |
| Operating Temperature: | -40°C To +125°C (industrial Grade) | Certifications: | IPC, RoHS, UL, ISO9001, ISO14001,ISO13485,IATF16949 |
| Other Service: | We Can Help With The Procurement Of Electronic Components On Behalf Of Customers. | Packaging Details: | Vacuum packing+Cardboard packing case |
| Supply Ability: | 50000㎡per week | ||
| Highlight: | IoT PCBA manufacturing for smart homes, PCB assembly for home monitoring systems, smart home PCBA with warranty | ||
Product Description
Revised Product Copy (zero repetition of original wording, more professional for official website)
Our integrated WiFi and Bluetooth IoT PCBA serves as an all-in-one wireless control hardware solution built exclusively for smart home control panels, environmental monitoring units and a full range of consumer IoT gadgets. This finished circuit assembly embeds built-in wireless communication modules, main control IC chips and matching peripheral electronic parts, supporting steady wireless signal connection, remote device manipulation and instant real-time data transfer.

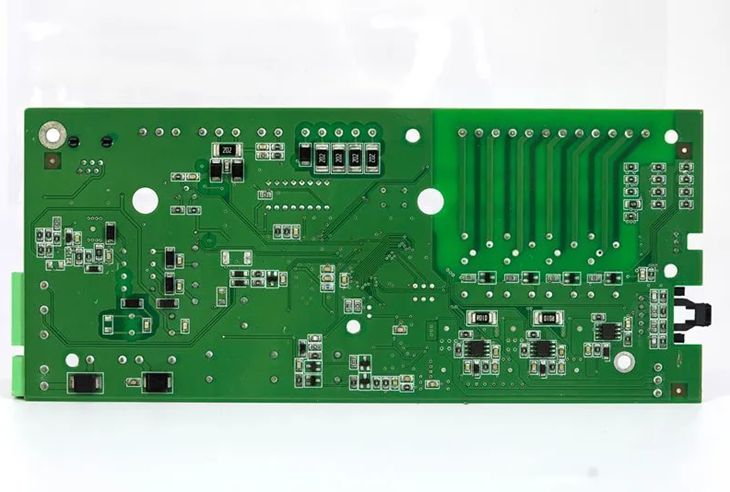

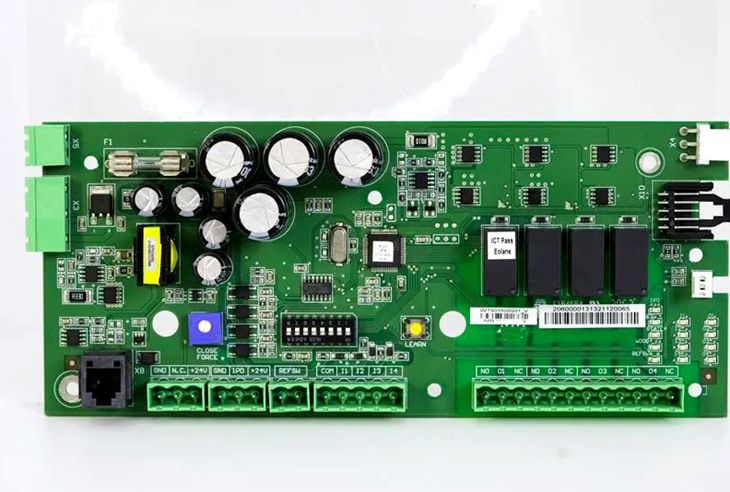

Ping PCB IoT PCB Assembly
IoT PCBA Product Features
-
High-Frequency Signal Integrity:
Supports 5G, Wi-Fi 6E, Bluetooth 5.3 with precise impedance control using low-loss materials like Rogers RO4003C. -
Ultra-Low Power Consumption:
Optimized for battery-powered devices with PMICs and sleep-mode circuits (standby <8μA). -
Miniaturization & High-Density Layouts:
Integrates 01005/0201 passive components, system-in-package (SiP), and HDI design for compact layouts. -
Flexible & Rigid-Flex Design:
Combines rigid FR-4 and flexible polyimide for curved or wearable devices. -
Thermal Management:
Copper cladding and heat spreaders reduce hotspot temperatures by 15–30%. -
Environmental Resilience:
3D coating and RoHS-compliant materials resist UV, salt fog, and extreme temperatures.
Ping PCB IoT PCB Assembly
Advantages of IoT PCB Assembly
-
Rapid Time-to-Market:
Flexible manufacturing enables 3-month iteration cycles, 10-minute small-batch changeovers. -
Cost-Effective Scalability:
Modular production supports 100–100,000 units without large-volume penalties. -
Signal Reliability:
Hybrid stack-up with controlled impedance ensures <5% signal loss in 5G/mmWave applications. -
Green Manufacturing:
ENIG/OSP finishes and halogen-free materials comply with EU environmental standards. -
Multi-Domain Compatibility:
Simultaneous operation of sensors, RF modules, and microcontrollers with EMI shielding.
Technical Challenges & Ring PCB Solutions
| Challenge | Ring PCB Solution |
|---|---|
| Precision Soldering | SPI 3D solder paste inspection + AOI + X-ray, <5% voiding in BGA joints |
| High-Frequency Layout | Millimeter-wave routing <10μm linewidth; hybrid laminates (Megtron 6 + Rogers) |
| Thermal Expansion | Manage CTE mismatch between copper & FR-4 to avoid delamination |
| EMC Compliance | Ground planes and differential pairs minimize interference |
| Material Selection | Optimize Dk vs. cost: Rogers RO4003C (3.38) vs. standard FR-4 (4.4) |
Application Areas of IoT PCBA
| Industry | Use Cases |
|---|---|
| Smart Home | Smart locks, HVAC controllers, voice assistants (<10μA standby) |
| Industrial IoT | Predictive maintenance sensors, PLCs, robotics |
| Healthcare | Wearable health monitors (ECG, glucose) with biocompatibility |
| Logistics | Asset trackers (GPS + LoRa) for cold chain management |
| Agriculture | Soil moisture sensors, drone-based crop monitoring |
| Automotive | Telematics (T-BOX), ADAS modules (-40°C to 125°C) |
Technical Parameters
| Parameter | Specification |
|---|---|
| Layer Count | 1–40 layers (standard: 2–16) |
| Copper Thickness | 0.5–14 oz (1–3 oz typical for IoT) |
| Min. Line/Space | 2.5/2.5 mil (0.0635mm) for HDI |
| Microvia Diameter | 0.08–0.15 mm (stacked/buried) |
| Material Options | FR-4 (Tg 130–170°C), Rogers RO4003C, Aluminum cores |
| Inspection | AOI, X-ray (BGA void analysis), ICT |
| Surface Finish | ENIG, OSP, HASL (lead-free), gold plating |
| Thermal Resistance | <10°C/W with 0.1mm copper cladding |
| RoHS Compliance | Halogen-free, lead-free, REACH-certified |
| Operating Temp | -40°C to +125°C (industrial grade) |
Note: Custom IoT PCBAs available. Contact our customer service for specific requirements.
Why Choose Ring PCB?
1. Direct Factory Pricing & Transparent Manufacturing
-
Self-owned Shenzhen factory ensures cost control and eliminates middlemen.
-
Factory visits welcome to see automated SMT lines and production processes.
2. End-to-End One-Stop PCB & PCBA Services
-
PCB fabrication (2–48 layers), component sourcing, SMT assembly, turnkey projects.
-
18+ years of experience, 500+ skilled employees, 5,000+ electronic projects for 3,000+ global clients.
3. Stringent Quality Control
-
Multi-stage QA: SPI 3D, AOI, LCR testing, X-ray inspections for zero-defect BGA joints.
-
Certified to IPC standards, RoHS, UL, ISO 9001/14001/13485, IATF16949.
4. Industry-Leading Capabilities & Customization
-
High-frequency, heavy copper, HDI, and complex PCBAs for communication, medical, EV charging, robotics.
-
Prototype-to-mass-production support with fast turnaround via in-house factories.
5. Reliable Partner for Diverse Applications
-
Security, industrial automation, drones, servers, IoT systems.
-
Real-time QC, incoming material inspection, and on-time delivery guaranteed.
Ring PCB Turnkey Advantages
-
Convenience: One-stop service reduces supply chain complexity.
-
Quality: Certifications and multi-inspections ensure reliability.
-
Speed: In-house production for fast prototyping & delivery.
-
Cost-Effectiveness: Direct factory pricing, no quality compromise.
-
Expertise: 18+ years supporting global clients across diverse industries.
Contact Us
Whether you are developing small-batch IoT prototype electronics or mass-producing smart home, wearable and industrial IoT devices, our custom rigid FR-4 PCB assembly service can fully match your design demands. From bare FR4 PCB fabrication, component sourcing to complete SMT and through-hole assembly plus multi-stage quality inspection, our full turnkey system cuts your supply chain costs and shortens product launch cycles. Send your Gerber files and BOM lists to us now to receive a customized manufacturing plan and competitive quotation quickly.
