Notebook Mainboard PCBA | PCBA For Communication
Product Overview

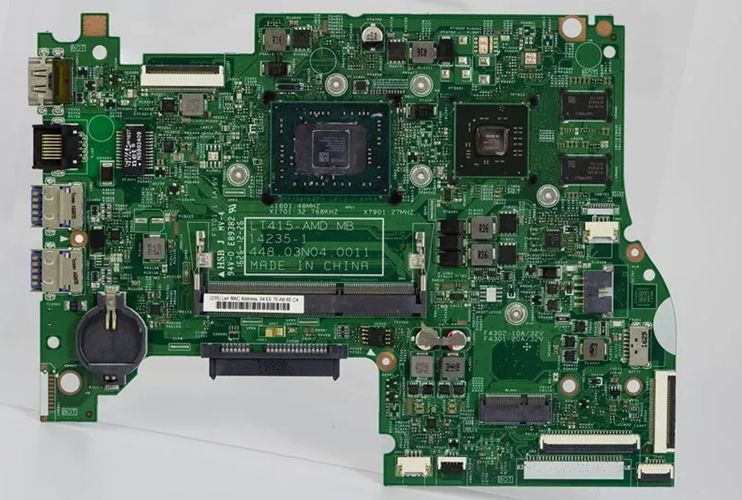

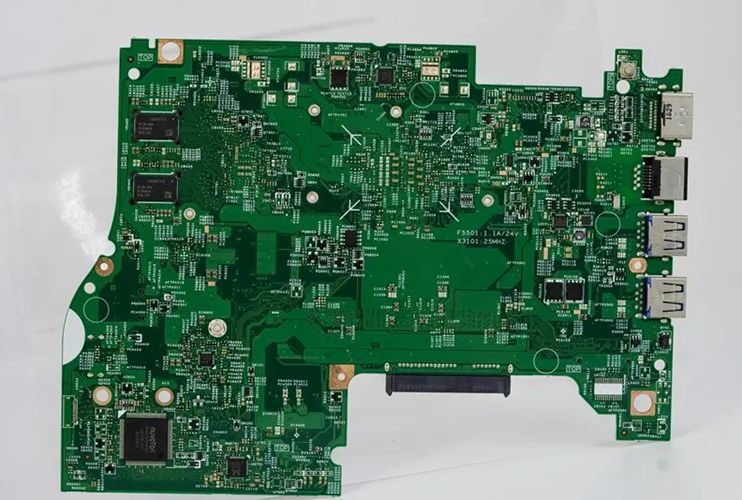

This notebook mainboard PCBA serves as the core control unit of portable laptops, built on AMD computing platform. Equipped with CPU, discrete GPU, memory chips and complete peripheral interfaces, the board integrates data processing, network communication, video output and storage control functions. Classified under PCBA For Communication, it is widely adopted for consumer and business portable computing devices.
Ring PCB provides professional OEM & custom PCBA manufacturing service for notebook mainboards. We support full-cycle customization based on customers’ Gerber files, BOM and technical specifications, covering prototype R&D verification and bulk mass production.
Key Product Features
- High-density PCB layout with optimized signal and power routing, ensuring stable long-time operation of portable laptops.
- Mature BGA soldering process for CPU and GPU chips, effectively reducing voids, cold solder joints and improving product yield.
- Built-in complete ESD protection circuit, enhancing stability under frequent mobile usage scenarios.
- Integrated abundant communication and peripheral interfaces, supporting network access, external display and multi-device connection.
- Strict thermal layout design to lower operating temperature of core chips and extend service life.
General Standard Specifications of Communication PCBA
| Item | Details |
|---|---|
| Product Name | Notebook Mainboard PCBA |
| Category | PCBA For Communication |
| Supported Platform | AMD Platform (Customizable) |
| PCB Structure | 4–12 Layers High-Density Multilayer PCB |
| Base Material | High Tg FR-4 |
| Surface Finish | ENIG, OSP, HASL (Optional) |
| Assembly Technology | Precision SMT, BGA Soldering, THT Assembly |

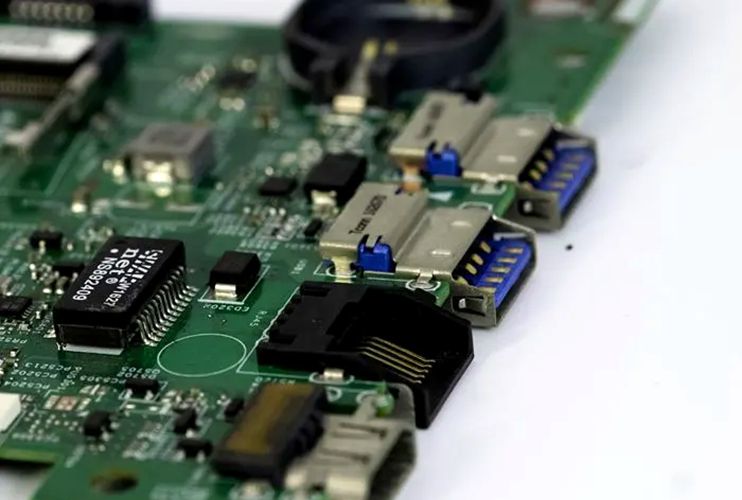

| Main Interfaces | USB, HDMI, RJ45 Ethernet, SATA, DDR Slot, LCD Connector, Battery Port |
| Compliance Standard | RoHS, REACH, IPC-A-610 Class 2 |
| Application | Business & Consumer Notebook Laptops |
All above parameters are for reference only.
Ring PCB Service & Advantages
✅ Customization & OEM Service Available We fully support OEM and personalized custom development. Adjust PCB outline, circuit layout, interface configuration and component matching according to your unique project requirements.
✅ Full Turnkey EMS One-Stop Solution Services include bare PCB fabrication, authorized component sourcing, SMT assembly, BGA rework, ICT testing and functional aging test. You only need to provide design documents.
✅ High Precision Manufacturing Capacity Experienced in HDI multilayer boards and large BGA component mounting, meeting the strict requirements of notebook mainboard assembly.
✅ Complete Quality Control System All products pass AOI, X-Ray inspection for BGA chips and electrical testing before delivery. ISO9001, UL certified factory guarantees consistent batch quality.
✅ Free DFM Engineering Support Our technical team provides free DFM analysis at the early design phase, discovering potential manufacturing risks and optimizing your design to save costs and shorten lead time.
RingPCB Manufacturing Strength & Full Turnkey Services
Our complete quality inspection process includes X-ray internal solder void detection, RF signal performance testing, thermal cycling aging, damp heat corrosion test and full-load 72-hour burn-in, with complete traceable test reports provided for every batch of communication PCBA. We adopt dual-source supply for core RF chips, MCUs and connectors to avoid production delays caused by component out-of-stock, stably supporting sample orders and mass production ranging from hundreds to tens of thousands of units.
