Ring PCB:Custom Industrial Control PCBA with Certifications: ISO9001, IATF16949, RoHS| Turnkey PCB Assembly
Definition of Industrial Control PCBA
MCU + DDR + FLASH + I/O PORT Architecture

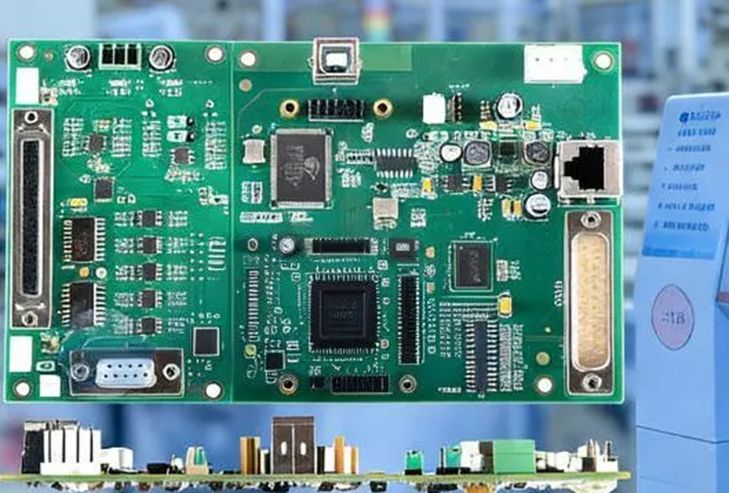

This industrial control PCB is a highly integrated control panel designed for stable, long-term operation in complex industrial environments. Featuring an MCU + DDR + FLASH + multi-I/O architecture, the board supports real-time control, data processing, communication, and peripheral expansion, making it suitable for a wide range of industrial automation applications.
As a professional provider of Printed Circuit Board Manufacturing & PCB Assembly, Ring PCB delivers customized solutions from design to mass production, ensuring reliability, scalability, and compliance with global standards.
1. Key Features of the PCB
This industrial control panel PCB integrates multiple functional modules on a single board:
-
High-performance MCU for real-time control and logic processing
-
DDR memory to support fast data buffering and multitasking
-
FLASH storage for firmware, configuration data, and logs
-
Rich I/O interfaces including Ethernet, serial ports, GPIO, and industrial connectors
-
Multi-layer PCB design for signal integrity and noise control
-
Industrial-grade components for enhanced reliability
The compact yet powerful design reflects advanced Printed Circuit Board Manufacturing & PCB Assembly capabilities tailored for industrial electronics.
2.Main Technical Challenges
-
Severe EMI & Signal Interference: Complex on-site machinery generates strong electromagnetic interference, causing signal distortion, data loss and equipment crash easily.
-
Extreme Temperature & Mechanical Vibration: Long-term temperature fluctuation (-40℃ to 85℃) and continuous equipment vibration lead to solder joint cracking, pad peeling and board delamination.
-
Humidity, Dust & Corrosion Damage: Damp and dusty workshop atmosphere erodes exposed circuits and metal components, shortening board service life sharply.
-
24/7 Uninterrupted Operation Pressure: Industrial automation equipment requires round-the-clock operation, which raises risks of overheating, circuit aging and sudden failure.
How RingPCB Overcomes These Technical Difficulties ?
-
Anti-EMI Layout Optimization: Our engineering team adopts professional shielding design, ground partitioning and impedance control during DFM review to isolate mixed signals effectively, guaranteeing stable signal transmission under strong electromagnetic interference.
-
High-Temperature & Vibration Resistant Materials: We apply high-Tg FR4 substrates with matched CTE coefficient, plus heavy copper PCB design and reinforced solder joints. All boards adapt to wide temperature changes and long-term mechanical vibration without structural damage.
-
Full Conformal Coating Protection: Professional silicone or acrylic conformal coating covers the whole board tightly, blocking moisture, dust and chemical corrosion perfectly for long-term outdoor and workshop use.
-
Strict Full-Range Reliability Testing: Every batch undergoes thermal cycling test, vibration aging test, AOI and X-ray inspection. Compliant with IPC-A-610 Class 3 standards, our PCBAs support stable 24/7 continuous operation with ultra-low failure rate.
3. Technical Parameters & Customization Services
(1) Common Technical Parameters
We list typical parameters below. However, we fully customize all specifications based on project requirements. Therefore, every FR-4 Industrial PCB Assembly project receives tailored engineering support.
| Parameter Category | Typical Specifications | Industrial Application Focus |
| Substrate Material | FR-4, CEM-3, Metal Core (Aluminum/Copper), High-Tg FR-4 (Tg ≥150°C) | Thermal stability and anti-vibration |
| Number of Layers | 2-Layer, 4-Layer, 6-Layer (up to 10-Layer for complex designs) | Signal integrity and miniaturization |
| Board Dimensions | Standard sizes: 50x30mm to 200x150mm (customizable to specific requirements) | Space optimization for industrial equipment |
| Board Thickness | 0.8mm – 2.0mm (common), up to 3.2mm for high-strength needs | Mechanical durability in harsh environments |
| Surface Finish | HASL (Lead-Free), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver | Corrosion resistance and solderability |
| Minimum Line Width/Spacing | 5mil/5mil (0.127mm/0.127mm) for standard; 3mil/3mil (0.076mm/0.076mm) for high-density | High-density component placement and signal clarity |
| Hole Diameter | Through-hole: 0.3mm – 3.0mm; Blind/Buried Vias: 0.15mm – 0.8mm | Multi-layer interconnection and thermal management |
| Thermal Resistance | Thermal conductivity: 0.8 – 2.0 W/m·K (metal core up to 240 W/m·K) | Heat dissipation for high-power components |
| Operating Temperature | -40°C to +85°C (standard); -55°C to +125°C (extended for extreme environments) | Stability in industrial temperature fluctuations |
| Electromagnetic Compatibility (EMC) | EMC shielding design (ground planes, ferrite beads), compliance with EN 61000 series | Interference resistance in noisy industrial fields |
| Testing Service | PCBA Testing | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| Certification | RoHS, REACH, UL 94V-0 (flame retardant), CE, ISO 9001 | Safety and environmental standards |
(2) Customization Services
| Customizable Aspects | Options & Capabilities | Customer Value Proposition |
| Material & Layer Design | – High-temperature materials (PTFE, Rogers) for aerospace/energy applications- Multi-layer stackup optimization for signal integrity | Tailored to unique environmental or performance needs |
| Special Surface Finishes | – Gold finger for pluggable connectors- ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) for high-reliability contacts | Enhanced durability for frequent connection/disconnection |
| Thermal Management Solutions | – Embedded heat sinks- Vias array for thermal conduction- Metal core PCB integration | Prevent overheating in high-power remote control systems |
| Mechanical & Environmental Adaptation | – Conformal coating (UV-cured, silicone, parylene) for moisture/dust protection- Stiffener plates for vibration resistance | Customized for harsh industrial environments (e.g., construction, marine) |
| Functional Integration | – On-board wireless modules (2.4GHz, 433MHz, LoRa) pre-installed- Safety circuits (overcurrent/overvoltage protection) | Turnkey solutions reducing development time |
| Size & Shape | – Non-standard shapes (cutouts, slots) for equipment installation- Miniaturized designs (down to 30x20mm) | Perfect fit for compact industrial devices |
Moreover, RingPCB provides full customization for FR-4 Industrial PCB Assembly projects.
- First, we optimize materials for aerospace and industrial environments
- In addition, we support ENIG and ENEPIG surface finishes
- Moreover, we integrate thermal vias and metal core structures
- Meanwhile, we apply conformal coating for moisture protection
- Furthermore, we embed wireless modules such as LoRa and 2.4GHz
- Finally, we design non-standard PCB shapes for compact devices
Why Choose RingPCB for Industrial PCBA?
At RingPCB, we provide complete industrial PCB solutions, not just manufacturing.
Core Capability 1: Precision Engineering
First, we support 2–48 layer PCB design with blind and buried vias.
In addition, we maintain impedance control within ±7%.
Therefore, we meet industrial-grade requirements.
Core Advantage 2: Integrated PCBA Services | One-Stop Turnkey Solutions
✓ PCB fabrication + component sourcing + SMT assembly + functional testing
✓ DFM / DFA optimization to reduce design risks and BOM costs
✓ AOI, X-ray inspection, and 100% functional testing
Core Advantage 3: Self-Owned Factory with Full Supply Chain Control
✓ Vertical integration from raw materials to final testing
✓ Triple quality assurance: AOI + impedance testing + thermal cycling
✓ Defect rate < 0.2% (industry average <1%)
✓ Certifications: ISO9001, IATF16949, RoHS
Contact Us
We provide OEM custom processing, all-around EMS electronic manufacturing and full turnkey PCB assembly service for FR-4 industrial device circuit boards, backed by our reliable quick turn manufacturing system for both small prototypes and large mass batches. Reach out to us with your design documents to unlock one-stop industrial PCBA manufacturing support and favorable pricing.
