Industrial Control PCBA (High-performance Main Control Version)
Product Overview

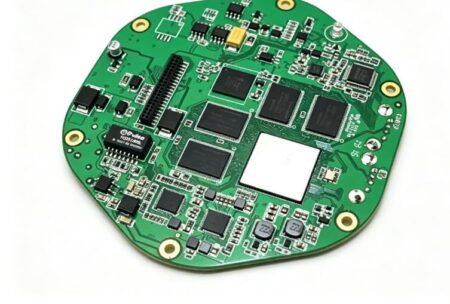

This high-performance industrial control PCBA serves as the core mainboard for machine vision, industrial inspection and industrial data acquisition equipment. Different from power-driven industrial boards, it focuses on high-speed data processing and stable industrial network communication. Equipped with main SOC processor, multiple storage chips and industrial Ethernet circuit, this circular PCBA is designed to fit inside compact industrial enclosures. It reliably processes image signals and sensor data in automated systems. RingPCB provides custom PCBA services including PCB fabrication, SMT assembly, component sourcing and full functional testing for industrial high-speed main control boards.
Core Features
- High-speed computing architecture: Integrated main SOC and multiple storage chips, supports rapid data and image processing for industrial inspection and vision systems
- Industrial Ethernet communication: Built-in Ethernet transformer module to realize stable data transmission between field equipment and upper computer
- High-density SMT assembly: Compact circular PCB layout with fine-pitch components, matched with high-precision SMT soldering process
- Reliable mechanical structure: Pre-installed fixing holes for easy assembly into customized industrial equipment housings
- Stable signal integrity: Strict high-speed signal layout design to reduce crosstalk, guaranteeing accurate data transmission in complex factory electromagnetic environments
- Customizable I/O interfaces: Rich high-density connectors reserved for connecting industrial cameras, sensors and peripheral modules
Key Advantages
- Strong data processing capability: Suitable for complex computing tasks such as image acquisition, signal analysis and real-time monitoring
- Excellent communication stability: Industrial-grade Ethernet design ensures long-distance and continuous data exchange on production sites
- High integration and space saving: Compact circular form factor helps customers miniaturize their industrial devices
- Strict multi-stage quality inspection: AOI, X-ray and functional testing implemented to check fine-pitch soldering quality before shipment
- Full-cycle custom service: Supports prototype validation, small batch trial run and mass production according to your Gerber and BOM files
- Professional DFM review: Our engineering team optimizes high-speed PCB layout in advance to avoid signal integrity risks and reduce development costs
Technical Parameters
| Item | Specification |
|---|---|
| Application | Machine vision, industrial inspection, industrial data acquisition |
| PCB Material | High Tg FR-4 |
| Surface Finish | ENIG / HASL / OSP (Optional) |
| Assembly Type | High-density SMT assembly |
| Working Temperature | -40℃ ~ 85℃ |
| Communication | Industrial Ethernet |
| Testing Standard | AOI, X-ray, Functional Test |
| Prototype Lead Time | 3 Working Days |
| Required Documents | Gerber, BOM, Centroid File |
Applications
This industrial control PCBA is widely used for machine vision controllers, industrial online inspection equipment, industrial data acquisition terminals, intelligent monitoring devices and compact industrial IoT control units.
Why Choose Ring PCB?
To deliver consistent, high-quality results for every custom PCB assembly project, Ring PCB supports clients with full in-house manufacturing strength and responsive service:
- 18+ Years of Global Expertise – Founded in 2008, we have served 3,000+ clients across 50+ countries with deep knowledge of global industrial standards.
- Self-Owned Full-Process Factory – 10,000 ㎡ in-house facility with 500 skilled staff; all PCB & PCBA production completed under one roof, no third-party outsourcing.
- Scalable Production Capacity – 50,000 ㎡ bare PCBs / 500 PCBA projects monthly output; high-multilayer boards up to 62 layers, from rapid prototyping to mass production.
- Full International Certifications – ISO 9001, ISO 14001, ISO 13485, IATF 16949, UL and RoHS compliant for global market access.
- 24/7 One-Stop Support – End-to-end PCB & PCBA service with round-the-clock production and cross-timezone engineering support.
FAQ
Q1: Do you provide custom industrial control PCBA for different industrial applications?
A: Yes. As an experienced printed circuit board manufacturer, we offer custom PCB assembly solutions for various industrial scenarios, including factory automation, power control, industrial communication, IoT gateways and more.
Q2: What is included in your One-Stop PCB & PCBA service?
A: Our one-stop solution covers bare PCB fabrication, electronic component sourcing from authorized channels, SMT/DIP assembly, AOI/X-ray inspection, functional testing and final packaging. You only need to communicate with one point of contact for the entire project.
Q3: What is your production capacity for industrial control PCBA projects?
A: Our monthly production capacity reaches 50,000 ㎡ of bare printed circuit boards and up to 500 PCBA projects, supporting prototype runs, small-batch trials and large-scale mass production.
Q4: What certifications do you have for industrial electronics manufacturing?
A: We hold full management system certifications including ISO 9001, IATF 16949, ISO 13485 and ISO 14001 (issued by SGS), as well as UL Recognized and RoHS compliance, meeting global industrial regulatory requirements.
Ready to start your custom industrial control PCBA project? Send your Gerber files and BOM list to us for a free DFM assessment and competitive quotation.
Email： rfq@ringpcb.com
