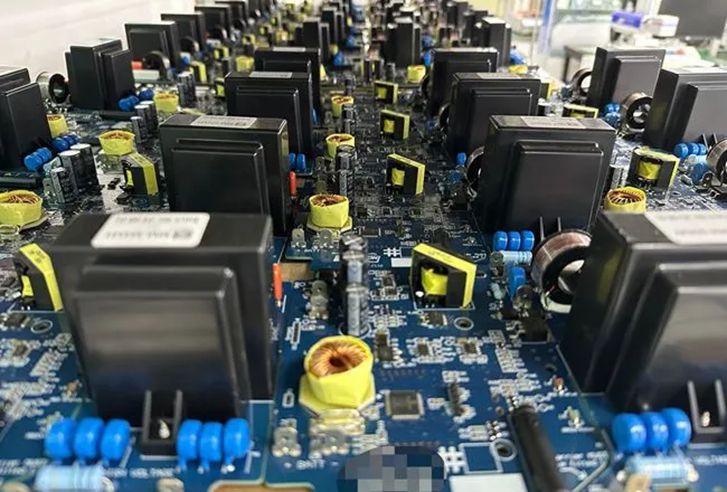

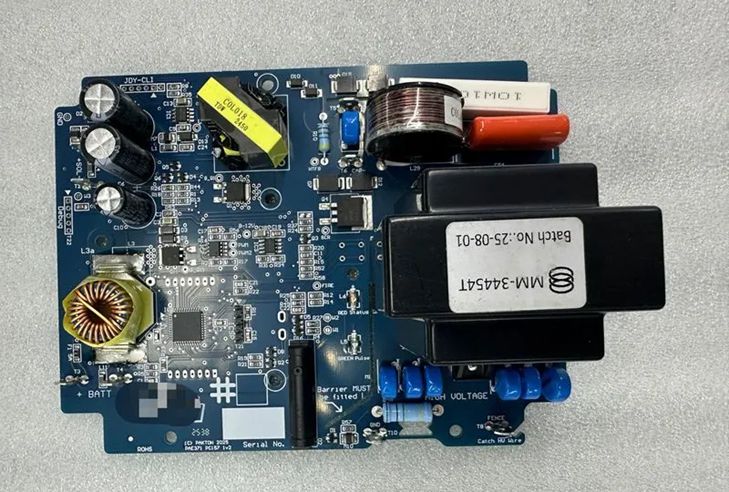

Ring PCB：Custom industrial control PCBA for electric fence energizer
Product Overview
This industrial control PCBA is the core mainboard specially developed for electric fence energizer systems. It integrates high-voltage pulse generation, intelligent fence loop detection, fault judgment and alarm output functions. Designed for outdoor perimeter security and agricultural livestock fencing scenarios, the board supports battery and solar power supply, realizing safe, low-energy and non-lethal high-voltage pulse deterrence. With reserved expandable interfaces, it supports remote monitoring and linkage alarm functions. We provide full-turnkey OEM & ODM customized PCBA manufacturing solutions for global security equipment brands.
Core Product Features
-
Professional High-Voltage Pulse Control: Adopts independent pulse boost circuit design, outputs stable intermittent high-voltage pulses with low energy, which is safe for human and animal deterrence without causing fatal injury, meeting international electric fence safety standards.
-
Intelligent Loop Fault Detection: Real-time monitoring of fence line open circuit, short circuit and intrusion status, automatically triggers local buzzer alarm and relay signal output, ensuring 24-hour reliable perimeter protection.
-
Wide Adaptability for Outdoor Environment: Supports DC battery power input and matches solar power system solutions, perfectly adapting to unattended outdoor scenes such as farms, pastures, villas and industrial parks.
-
Flexible Customization & Expandability: Reserved multiple functional expansion interfaces, supporting optional RS485, WiFi, 4G communication modules to realize remote data upload, cloud monitoring and remote alarm linkage. Pulse voltage, frequency and power grade are fully customizable.
-
Industrial-Grade Stability & Durability: Adopts industrial-grade MCU core and high-temperature resistant electronic components, with wide temperature working range, anti-interference circuit design, effectively resisting outdoor electromagnetic interference and temperature changes.
-
Complete Manufacturing & Testing System: Strictly produced in accordance with IPC-A-610 industrial standards, supporting conformal coating, aging test, high-voltage insulation test and full functional test to ensure long-term stable operation of finished equipment.
-
One-Stop ODM/OEM Service: Support schematic design, PCB layout, component sourcing, SMT & through-hole assembly, firmware programming and post-production testing, meeting personalized customization needs of different customers and regional standards.
Technical Specifications (Customizable Parameters Marked)
|
Item
|
Specification
|
Remark
|
|---|---|---|
|
Product Category
|
Industrial Control PCBA for Electric Fence Energizer
|
Core classification
|
|
Input Voltage
|
12V DC / 24V DC
|
Customizable
|
|
Power Supply Mode
|
Battery / Solar panel compatible
|
Customizable
|
|
Output Pulse Voltage
|
5kV – 10kV (typical)
|
Customizable by power grade
|
|
Pulse Duration
|
≤100μs (safety standard)
|
Customizable
|
|
Pulse Interval
|
1.0s – 1.5s (adjustable)
|
Customizable
|
|
Single Pulse Energy
|
≤5J (safe low energy)
|
Customizable
|
|
Detection Function
|
Fence open circuit / short circuit / intrusion detection
|
Standard configuration
|
|
Alarm Output
|
Buzzer alarm + Relay signal output
|
Standard configuration
|
|
Communication Interface
|
RS485 / WiFi / 4G (optional)
|
Customizable
|
|
Main Control Chip
|
32-bit industrial MCU
|
Customizable chip solution
|
|
PCB Layers
|
2 layers / 4 layers
|
Customizable
|
|
Assembly Process
|
SMT + Through-hole mixed assembly
|
Compliant with IPC-A-610 Class 2
|
|
Conformal Coating
|
Acrylic / Silicone coating (optional)
|
Customizable, for outdoor anti-corrosion
|
|
Operating Temperature
|
-40°C ~ +85°C
|
Industrial grade
|
|
Protection Grade
|
IP54 ~ IP65 (match enclosure)
|
Customizable
|
Application Scenarios
Widely used in industrial park perimeter security, factory anti-intrusion protection, residential villa safety protection, farm & ranch livestock isolation, wildlife prevention and other outdoor security protection fields.
Why Partner With Ring PCB?
Founded in 2008, Ring PCB is a professional PCB & PCBA manufacturer based in Shenzhen, China, operating a 10,000㎡ self-owned automated production facility with a 500-member skilled team.
- Full global certifications: ISO9001, IATF16949, UL, RoHS and REACH certified, meeting market access requirements for major global industrial regions
- Multi-stage quality inspection: SPI, AOI, LCR, BGA X-ray and full functional testing to eliminate soldering defects and verify circuit performance
- Stable supply chain: 16+ years of component sourcing experience with authorized supplier networks, mitigating shortage risks for long-term mass production orders
- Professional engineering support: Free DFM (Design for Manufacturing) review to optimize your design for production efficiency and cost reduction
- Trusted by global brands: Long-term cooperative partnerships with leading industrial clients including ABB, Siemens and Emerson
