Product Description

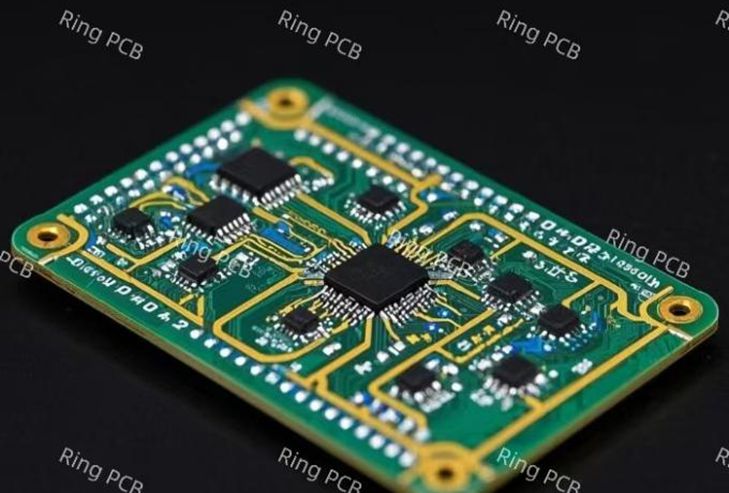

1. What is a High Speed PCB?
At RingPCB, we provide custom High speed Circuit Board PCB manufacturing combined with One-Stop Service for PCB and PCBA service, supporting customers from prototype to mass production. With strong engineering capabilities and advanced production facilities, we help global clients solve complex high-frequency design and assembly challenges efficiently.
2. Key Features of High Speed PCB
- Controlled Impedance: Precise impedance control (±5%–7%) for single-ended (50Ω) and differential pairs (90–100Ω) to eliminate signal reflection.
- Low-Loss Materials: Utilize substrates with low dielectric constant (Dk) and low dielectric loss factor (Df) (e.g., modified FR-4, PPO/PPE, Rogers) to reduce signal attenuation.
- Strict Signal Integrity Design: Differential pair routing, length-matched traces, 3W crosstalk reduction rule, and avoidance of right-angle traces.
- Multilayer & HDI Structure: 4–48 layer stack-ups with blind/buried vias and microvias (≤0.15mm) for high-density interconnects.
- Enhanced Thermal Management: Optimized power/ground planes and high-thermal-conductivity materials to dissipate heat from high-speed operation.
- High Precision Manufacturing: 3/3mil minimum line width/spacing, tight dielectric thickness tolerance (±10%), and laser drilling for microvias.
3.Challenges of Manufacturing High-speed PCBs
1. Material Selection
High-speed PCBs require specialized materials with low dielectric constants and low loss tangents to minimize signal degradation. Ring PCB employs appropriate high-frequency laminates, such as Rogers and Isola, ensuring optimal material selection based on the specific application and performance requirements.
2. Impedance Control
Variations in impedance can lead to signal reflections and crosstalk. Our engineering team utilizes advanced simulation tools to design traces with precise widths and spacing, ensuring consistent impedance. We also optimize the layer stack-up to enhance signal integrity and minimize interference.
3. Signal Integrity and Crosstalk
High-speed signals are susceptible to crosstalk and noise, which can degrade performance and reliability. Ring PCB employs differential pair routing techniques and advanced layout strategies to minimize crosstalk. We conduct thorough signal integrity analysis and simulations to identify potential issues before manufacturing.
4. Thermal Management
High-speed circuits generate more heat. We integrate effective thermal management solutions, such as thermal vias and copper pours, during the design phase. Our engineers analyze thermal performance to ensure optimal heat dissipation throughout the PCB.
5. Precision Manufacturing
The intricate designs of high-speed PCBs require high precision in fabrication, including fine trace widths and tightly packed components. Ring PCB uses state-of-the-art manufacturing equipment to achieve the precision. Our skilled operators and stringent quality control measures ensure that each board meets exact specifications.
6. Testing and Quality Assurance
We implement rigorous testing protocols, including AOI and ICT, to allow early detection of issues, minimizing the risk of failures.
4. High Speed PCB vs. Standard PCB
| Comparison Aspect | High Speed PCB | Standard PCB (FR-4) |
|---|---|---|
| Signal Frequency/Data Rate | ≥50MHz / ≥1Gbps; fast rise-time signals (<1ns) | Low to moderate (<50MHz); slow rise-time signals |
| Core Design Goal | Signal integrity, impedance control, minimal loss | Basic electrical connectivity, mechanical support |
| Dielectric Material | Low Dk (≤3.5), low Df (≤0.006 @10GHz); modified FR-4, Rogers, PPO/PPE | Standard FR-4 (Dk≈4.4, Df≈0.018 @10GHz) |
| Impedance Control | Required (±5%–7%); 50Ω (single-ended), 90–100Ω (differential) | Not required; no impedance matching |
| Layer Count | 4–48 layers; HDI with blind/buried vias | 1–4 layers; simple through-hole vias |
| Line Width/Spacing | 3/3mil (0.075mm/0.075mm) minimum | 6/6mil (0.15mm/0.15mm) minimum |
| Crosstalk & Reflection | Strictly controlled (≤-35dB crosstalk); 3W rule compliance | Minimal consideration; no strict routing rules |
| Tg (Glass Transition Temp) | ≥170°C; high thermal stability | ≥135°C; standard thermal resistance |
| Cost | Higher (advanced materials, precision processes) | Low (cost-effective FR-4, simple manufacturing) |
| Typical Applications | 5G, servers, AI accelerators, high-speed networking | Consumer electronics, home appliances, low-frequency devices |
4. Application Fields of High Speed PCB
- 5G & Telecommunications: 5G baseband units, high-speed routers, switches, and RF transceivers.
- Data Centers & AI Computing: Server motherboards, GPU accelerators, DDR5 memory modules, and 400G/800G network switches.
- Industrial & IoT: High-speed industrial controllers, IoT gateways, and automation equipment requiring low-latency data transmission.
- Medical Electronics: High-resolution imaging systems (MRI/CT), diagnostic equipment, and patient monitoring devices.
- Automotive Electronics: Autonomous driving ECUs, in-vehicle high-speed communication (Ethernet), and ADAS systems.
- Consumer Electronics: High-end smartphones, gaming consoles, and 8K video devices with high-speed interfaces.
One-Stop Service for PCB and PCBA Solutions!
Ring PCB’s Key Advantages
-
Advanced Engineering for Precision PCB Manufacturing
-
High-Density Stack-Up: 2-48 layer boards, ideal for 5G, industrial control, medical devices, and automotive electronics.
-
Smart Manufacturing: Self-owned facilities with LDI laser exposure, vacuum lamination, and flying probe testers, ensuring compliance with IPC-6012 Class 3 standards.
-
-
Integrated PCBA Services | One-Stop Turnkey Solutions
-
Full Assembly Support: PCB fabrication, component sourcing, SMT assembly, and functional testing, all under one roof.
-
DFM/DFA Optimization: Our expert engineering team optimizes designs to reduce risks and BOM costs, enhancing efficiency.
-
Rigorous Quality Control: X-ray inspection, AOI testing, and 100% functional validation ensure zero-defect delivery.
-
-
Self-Owned Factory with Full Supply Chain Control
-
Vertical Integration: We manage raw material procurement, production, and testing in-house, ensuring maximum control over the production process.
-
Triple Quality Assurance: AOI, impedance testing, and thermal cycling with a defect rate of <0.2% (industry average: <1%).
-
Global Certifications: ISO9001, IATF16949, and RoHS compliance to meet international standards.
-
Why Choose Ring PCB?
-
18Years of Excellence in PCB and PCBA manufacturing, offering high-quality, reliable products for critical applications.
-
Self-Owned Factories ensure full control over the production process, allowing us to meet strict deadlines and guarantee consistent quality.
-
End-to-End Technical Support: From design and prototyping to mass production and final assembly, we provide comprehensive support at every stage.
-
Fast Turnaround: Prototype production within 3 days and mass production within 7 days to keep your projects on schedule.
-
Global Reach: Serving customers in over 50 countries with ongoing industrial partnerships.
