Product Description
Customized PCB And PCB Manufacturer FR-4 muti-layers industrial device PCB Circuit Board Manufacturing And Assembly
1.Product Features and Advantages
(1) Industrial-Grade Reliability
Designed for harsh environments with high resistance to dust, moisture, vibration, and temperature fluctuations (-40°C to +85°C), ensuring stable operation in industrial settings.
Adopts high-quality FR-4 or metal-core PCB materials with excellent electrical insulation and thermal conductivity.
(2) Robust Signal Processing
Integrates high-performance microcontrollers and wireless modules (e.g., RF, Bluetooth, ZigBee) for reliable long-distance signal transmission (up to 100 meters+), with anti-interference algorithms to minimize signal loss.
Supports real-time feedback and error correction for precise control commands.
(3) Compact and Rigid Structure
Rigid PCB design offers mechanical stability, preventing deformation in heavy machinery or mobile applications.
High-density component placement enables miniaturization while maintaining durability.
(4) Long Lifespan and Low Maintenance
Uses lead-free soldering and surface mount technology (SMT) for high reliability, reducing failure rates and maintenance costs over the product lifecycle.
2.Technical Challenges
(1) Electromagnetic Interference (EMI) Suppression
Industrial environments often have strong electromagnetic fields, requiring advanced shielding designs (e.g., grounded copper planes, ferrite beads) to prevent signal distortion.
(2) Thermal Management
High-power components (e.g., amplifiers, microprocessors) generate heat, necessitating thermal via structures or heat sinks to avoid overheating and performance degradation.
(3)Miniaturization vs. Functionality
Balancing compact size with integrated features (e.g., multiple control channels, safety circuits) requires advanced PCB layout techniques (e.g., multi-layer boards, buried vias).
(4) Certification and Compliance
Meeting industrial standards (e.g., CE, UL, ISO 13849 for functional safety) demands rigorous testing for EMC, safety, and environmental durability.
3.Technical Parameters & Customization Services
(1) Common Technical Parameters
| Parameter Category | Typical Specifications | Industrial Application Focus |
| Substrate Material | FR-4, CEM-3, Metal Core (Aluminum/Copper), High-Tg FR-4 (Tg ≥150°C) | Thermal stability and anti-vibration |
| Number of Layers | 2-Layer, 4-Layer, 6-Layer (up to 10-Layer for complex designs) | Signal integrity and miniaturization |
| Board Dimensions | Standard sizes: 50x30mm to 200x150mm (customizable to specific requirements) | Space optimization for industrial equipment |
| Board Thickness | 0.8mm – 2.0mm (common), up to 3.2mm for high-strength needs | Mechanical durability in harsh environments |
| Surface Finish | HASL (Lead-Free), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver | Corrosion resistance and solderability |
| Minimum Line Width/Spacing | 5mil/5mil (0.127mm/0.127mm) for standard; 3mil/3mil (0.076mm/0.076mm) for high-density | High-density component placement and signal clarity |
| Hole Diameter | Through-hole: 0.3mm – 3.0mm; Blind/Buried Vias: 0.15mm – 0.8mm | Multi-layer interconnection and thermal management |
| Thermal Resistance | Thermal conductivity: 0.8 – 2.0 W/m·K (metal core up to 240 W/m·K) | Heat dissipation for high-power components |
| Operating Temperature | -40°C to +85°C (standard); -55°C to +125°C (extended for extreme environments) | Stability in industrial temperature fluctuations |
| Electromagnetic Compatibility (EMC) | EMC shielding design (ground planes, ferrite beads), compliance with EN 61000 series | Interference resistance in noisy industrial fields |
| Testing Service | PCBA Testing | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| Certification | RoHS, REACH, UL 94V-0 (flame retardant), CE, ISO 9001 | Safety and environmental standards |
(2) Customization Services
| Customizable Aspects | Options & Capabilities | Customer Value Proposition |
| Material & Layer Design | – High-temperature materials (PTFE, Rogers) for aerospace/energy applications- Multi-layer stackup optimization for signal integrity | Tailored to unique environmental or performance needs |
| Special Surface Finishes | – Gold finger for pluggable connectors- ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) for high-reliability contacts | Enhanced durability for frequent connection/disconnection |
| Thermal Management Solutions | – Embedded heat sinks- Vias array for thermal conduction- Metal core PCB integration | Prevent overheating in high-power remote control systems |
| Mechanical & Environmental Adaptation | – Conformal coating (UV-cured, silicone, parylene) for moisture/dust protection- Stiffener plates for vibration resistance | Customized for harsh industrial environments (e.g., construction, marine) |
| Functional Integration | – On-board wireless modules (2.4GHz, 433MHz, LoRa) pre-installed- Safety circuits (overcurrent/overvoltage protection) | Turnkey solutions reducing development time |
| Size & Shape | – Non-standard shapes (cutouts, slots) for equipment installation- Miniaturized designs (down to 30x20mm) | Perfect fit for compact industrial devices |
Service Commitment
- Technical Support: Dedicated engineering team for DFM (Design for Manufacturing) consultation and PCB layout optimization.
- Rapid Prototyping: 3-7 days for sample production (urgent orders available).
- Volume Production: ISO-certified manufacturing lines ensuring consistency from prototype to mass production.

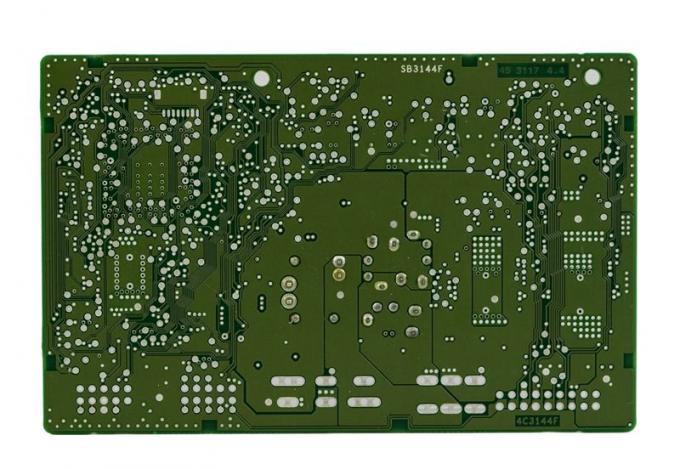

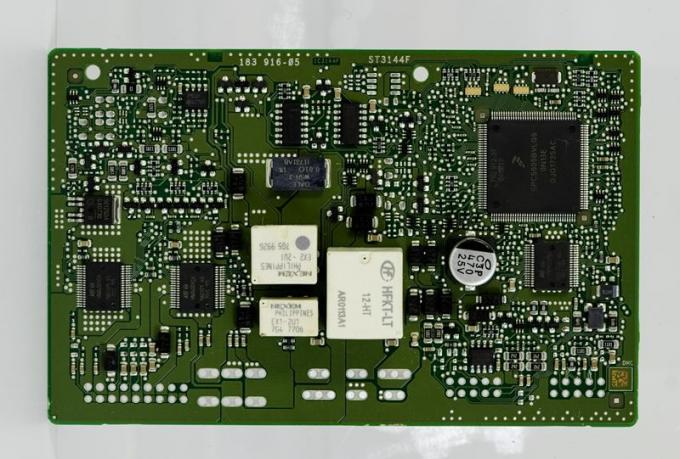

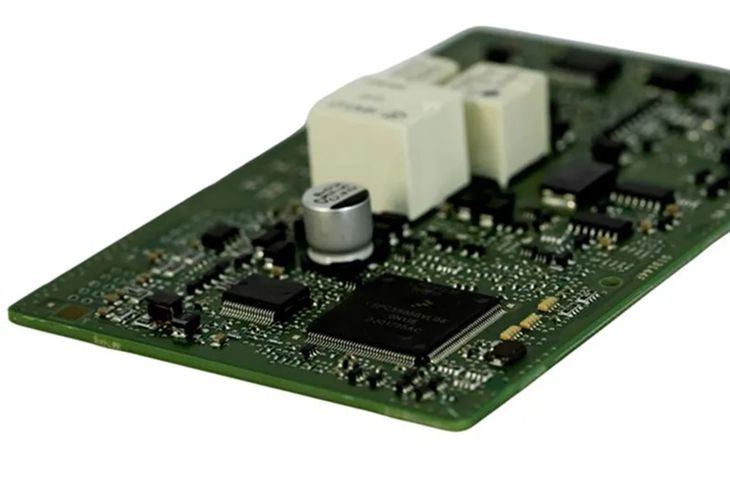

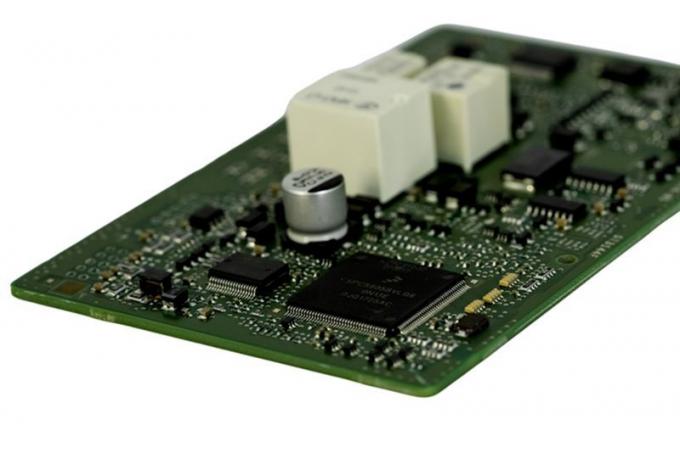

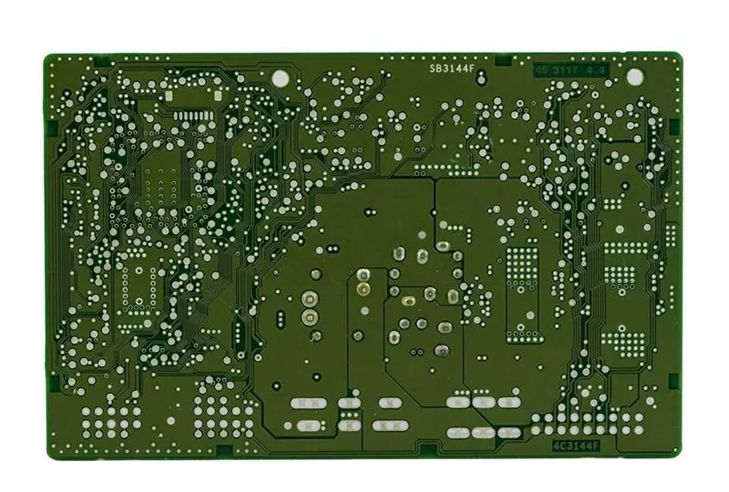

Here are the pictures of Automatic control data operation core PCB assembly
Why Choose Ring PCB for Industrial Control PCBA?
At Ring PCB, we don’t just manufacture products — we deliver reliable industrial solutions.
With complete PCB fabrication, PCB assembly, and turnkey PCBA services, we help customers reduce cost, shorten lead time, and improve product stability.
18 Years of Excellence | Self-Owned Factory | End-to-End Technical Support
Core Advantage 1: Advanced Engineering for Precision PCB Manufacturing
-
High-density stack-up: 2–48 layers, blind & buried vias
-
Minimum trace/spacing: 3/3 mil, impedance tolerance ±7%
-
Ideal for industrial control, medical devices, automotive electronics, and 5G applications
-
IPC-6012 Class 3 manufacturing standards
Core Advantage 2: Integrated PCBA Services | One-Stop Turnkey Solutions
✓ PCB fabrication + component sourcing + SMT assembly + functional testing
✓ DFM / DFA optimization to reduce design risks and BOM costs
✓ AOI, X-ray inspection, and 100% functional testing
oplus_0
Core Advantage 3: Self-Owned Factory with Full Supply Chain Control
✓ Vertical integration from raw materials to final testing
✓ Triple quality assurance: AOI + impedance testing + thermal cycling
✓ Defect rate < 0.2% (industry average <1%)
✓ Certifications: ISO9001, IATF16949, RoHS
Contact Us
We provide OEM custom processing, all-around EMS electronic manufacturing and full turnkey PCB assembly service for FR-4 industrial device circuit boards, backed by our reliable quick turn manufacturing system for both small prototypes and large mass batches. Reach out to us with your design documents to unlock one-stop industrial PCBA manufacturing support and favorable pricing.
