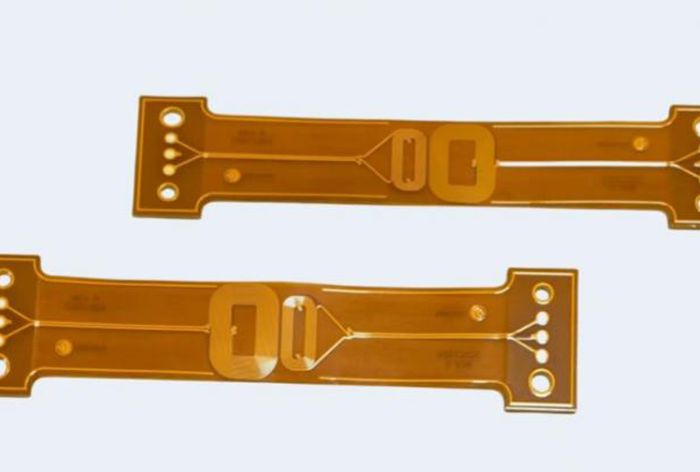

Flexible PCB | Definition & Key Features
Definition
Key Product Features
- Ultra flexible, bendable, foldable and twistable for 3D installation
- Light weight and thin thickness, saving product internal space
- High wiring density, suitable for miniaturized electronic products
- Excellent heat resistance, insulation and stable electrical performance
- Strong anti-vibration and anti-fatigue ability for long-term dynamic use
- Compatible with SMT assembly and complex circuit design
- Ideal for connecting moving parts and irregular structural layouts
Technical Parameters of flex PCB
| Capability | Description |
|---|---|
| Layer Count | Up to 8 layers |
| Material Options | Polyimide, Polyester (PET), Adhesive-less materials |
| Thickness Range | 0.05mm – 0.4mm (flexible material only) |
| Max Board Size | Up to 18″ x 24″ |
| Min Trace Width/Spacing | 0.075mm (3 mil) |
| Min Hole Size | 0.1mm (4 mil) |
| Surface Finish | ENIG, OSP, Immersion Silver, Immersion Tin, HASL |
| Stiffener Options | Polyimide, FR4, Stainless Steel |
| Impedance Control | ±10% for high-frequency applications |
| Bend Radius | Down to 1.5x the material thickness |
| Solder Mask Colors | Yellow, White, Black, Green |
| Testing and Inspection | AOI, Electrical Testing, Thermal Cycling |
| Turnaround Time | Standard and expedited options available |
| Environmental Compliance | RoHS, REACH compliant materials |
| Certifications | IATF 16949:2024
ISO 9001:2015 ISO14001:2015 ISO13485:2016 |
Note:
The above parameters are for reference only. Actual specifications can be customized based on project requirements. Please contact Ring PCB’s professional team for technical consultation.
| Comparison Item | Rigid PCB | Flex PCB |
|---|---|---|
| Base Material & Flexibility | Made of rigid FR-4 substrate, cannot be bent or folded | Made of flexible polyimide/PET, can be bent, folded, twisted, and shaped freely |
| Form & Installation | Flat, fixed structure; planar installation only | Ultra-thin, lightweight; supports 3D, irregular, and dynamic installation |
| Space & Weight | Thicker and heavier; occupies more internal space | Compact and slim; saves space and reduces overall product weight |
| Wiring & Design | Suitable for standard, static circuit layouts | Supports high-density wiring for complex and miniaturized designs |
| Durability & Fatigue Resistance | Good impact resistance, but prone to cracking under repeated bending | Excellent flex fatigue resistance; ideal for dynamic and moving applications |
| Manufacturing & Cost | Mature process, lower material and production cost | Specialized materials and processes, relatively higher cost |
| Common Applications | Consumer electronics, home appliances, industrial control, power supplies | Wearables, medical devices, automotive electronics, aerospace, camera modules, and foldable devices |
