Product Overview

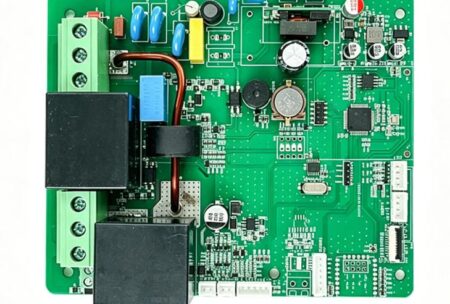

This image shows a custom EV charger control PCBA designed for electric vehicle wallbox charging stations. Equipped with high-current power relays, EMI filter circuit and main control MCU, this board manages power switching, safety protection and charging status monitoring. As a professional printed circuit board manufacturer, Ring PCB delivers comprehensive One-Stop PCB & PCBA service for global clients, covering bare board fabrication, authorized component sourcing, mixed SMT & through-hole assembly and full quality verification. Our EV charger PCBA solutions are widely applied in residential and commercial AC charging wallboxes, charging pile control units and energy management systems. Every custom PCB assembly project meets strict automotive and safety reliability standards. With in-house manufacturing facilities and 18 years of industry experience, we deliver consistent high quality for every EV charger PCBA order, from rapid prototype validation to full-scale mass production.
Key Features & Advantages
- High-current power relay design, supports safe connection and disconnection of AC charging power
- Integrated EMI filter circuit, effectively suppresses electromagnetic interference and improves EMC performance
- Mixed SMT + DIP assembly, compatible with both small signal chips and high-current through-hole power components
- Built-in multi-protection circuits: over-current, over-voltage, over-temperature and leakage protection for charging safety
- Full-process quality control: solder paste inspection, AOI optical inspection, X-ray inspection and power functional testing
- Full global regulatory compliance: ISO 9001, IATF 16949, ISO 13485, ISO 14001, RoHS, UL Recognized
- One-Stop PCB & PCBA service simplifies your supply chain, reduces communication costs and shortens project lead time
Technical Challenges for EV Charger PCBA Manufacturing
EV charger control PCBA works under AC high-voltage conditions, facing risks of high current, temperature rise and electromagnetic interference, which brings multiple manufacturing challenges. First, high-current tracks require sufficient copper thickness and optimized layout to avoid overheating during long-time charging. Second, isolation clearance and creepage distance must strictly follow safety standards to prevent high-voltage breakdown. Third, the soldering of large power relays and through-hole components needs stable solder joints to resist thermal cycling and vibration. Our engineering team conducts professional DFM manufacturability review at the early stage of each custom PCB assembly project, addressing these risks in advance to ensure the EV charger PCBA runs safely and stably for charging infrastructure.
Technical Parameters
Note: The parameters below are for reference only. Please contact our professional customer service for exact specifications and customized requirements.
| Item | Specification |
|---|---|
| Product Category | EV Charger Control PCBA (AC Wallbox Mainboard) |
| PCB Layer Count | 2–62 layers customizable |
| PCB Material | FR-4, High-Tg FR-4, Aluminum base (optional) |
| Copper Weight | 1 oz – 6 oz, customized for high-current power tracks |
| Surface Finish | HASL, ENIG, OSP, Hard Gold, Immersion Silver |
| Assembly Type | Mixed SMT + DIP through-hole assembly |
| Component Types | MCU, high-current relays, EMI filter, safety capacitors, power connectors |
| Certifications | ISO 9001, IATF 16949, ISO 13485, ISO 14001, RoHS, UL |
| Service Scope | One-Stop PCB & PCBA service (fabrication + assembly + testing) |
Why Choose Ring PCB
- 18+ Years of Global Expertise – Founded in 2008, we have served 3,000+ clients across 50+ countries with deep knowledge of global energy and automotive standards.
- Self-Owned Full-Process Factory – 10,000 ㎡ in-house facility with 500 skilled staff; all PCB & PCBA production completed under one roof, no third-party outsourcing.
- Scalable Production Capacity – 50,000 ㎡ bare PCBs / 500 PCBA projects monthly output; high-multilayer boards up to 62 layers, from rapid prototyping to mass production.
- Full International Certifications – ISO 9001, ISO 14001, ISO 13485, IATF 16949, UL and RoHS compliant for global market access.
- 24/7 One-Stop Support – End-to-end PCB & PCBA service with round-the-clock production and cross-timezone engineering support.
FAQ
Q1: Can you custom EV charger PCBA for AC wallbox charging stations?
A: Yes. We provide custom PCB assembly for AC wallbox control boards, supporting high-current power switching, multi safety protection and optional OCPP communication function. You provide your finished board files, and we handle fabrication, component sourcing and assembly.
Q2: What is included in your One-Stop PCB & PCBA service?
A: Our one-stop solution covers bare PCB fabrication, electronic component sourcing from authorized channels, SMT & DIP assembly, AOI/X-ray inspection, functional testing and final packaging. You only need one point of contact for the entire project.
Q3: Can you support small-batch prototype EV charger PCBA?
A: Absolutely. We support 3-day rapid prototyping and small-batch trial production, with the same automotive-grade quality standards as mass production, to help you speed up product verification.
Q4: What support can your engineering team offer for EV charger PCBA projects?
A: Our engineering team provides free professional DFM manufacturability review, including high-current copper design, safety creepage distance check, thermal and EMC optimization, to improve safety and production yield.
Q5: What certifications do you have for EV charging electronics manufacturing?
A: We hold full management system certifications including ISO 9001, IATF 16949, ISO 13485 and ISO 14001 (issued by SGS), as well as UL Recognized and RoHS compliance, meeting global EV charging regulatory requirements.
Ready to start your custom EV charger PCBA project? Send your Gerber files and BOM list to us for a free DFM assessment and competitive quotation. 📧 rfq@ringpcb.com
