Ring PCB：One-Stop Industrial Mainboard PCBA Service, High-Density Multilayer Fabrication & SMT for Small-Medium Batch Industrial Electronics
1.Product Features
- Adopts high-Tg FR4 multilayer substrate, withstands -40℃~85℃ wide temperature range; thick copper power traces improve load capacity for harsh industrial conditions.
- High-density PCB layout with large-size BGA chips, blind & buried vias plus impedance control to guarantee stable high-speed signal transmission.
- Hybrid SMT & DIP assembly: industrial-grade components, mixed mounting of big BGA, mini 0201 parts and long-pin connectors with excellent anti-EMI capability.
- Widely used for industrial automation controllers, embedded IPC and machine vision mainboards; customizable full turnkey service for small & medium batches.
2.Core Manufacturing Process
- PCB production: Multilayer pressing, laser blind hole processing, impedance tuning and ENIG surface treatment for long-term soldering reliability.
- PCBA assembly: High-precision SMT for large BGA, 100% X-ray inspection to eliminate invisible solder defects; wave soldering for through-hole connectors.
- Strict reliability tests including ICT, FCT and burn-in aging; optional conformal coating for moisture, mold and salt spray resistance.

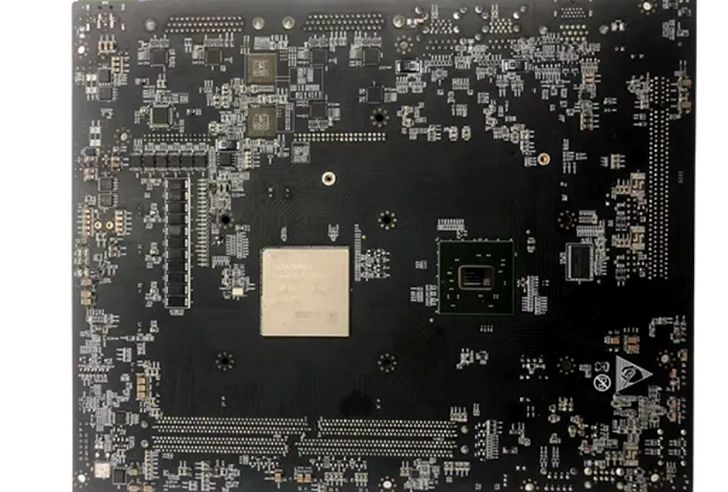

Industrial Control Mainboard PCBA
3.Technical Parameters & Customization Services
(1) Common Technical Parameters
| Parameter Category | Typical Specifications | Industrial Application Focus |
| Substrate Material | FR-4, CEM-3, Metal Core (Aluminum/Copper), High-Tg FR-4 (Tg ≥150°C) | Thermal stability and anti-vibration |
| Number of Layers | 2-Layer, 4-Layer, 6-Layer (up to 10-Layer for complex designs) | Signal integrity and miniaturization |
| Board Dimensions | Standard sizes: 50x30mm to 200x150mm (customizable to specific requirements) | Space optimization for industrial equipment |
| Board Thickness | 0.8mm – 2.0mm (common), up to 3.2mm for high-strength needs | Mechanical durability in harsh environments |
| Surface Finish | HASL (Lead-Free), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver | Corrosion resistance and solderability |
| Minimum Line Width/Spacing | 5mil/5mil (0.127mm/0.127mm) for standard; 3mil/3mil (0.076mm/0.076mm) for high-density | High-density component placement and signal clarity |
| Hole Diameter | Through-hole: 0.3mm – 3.0mm; Blind/Buried Vias: 0.15mm – 0.8mm | Multi-layer interconnection and thermal management |
| Thermal Resistance | Thermal conductivity: 0.8 – 2.0 W/m·K (metal core up to 240 W/m·K) | Heat dissipation for high-power components |
| Operating Temperature | -40°C to +85°C (standard); -55°C to +125°C (extended for extreme environments) | Stability in industrial temperature fluctuations |
| Electromagnetic Compatibility (EMC) | EMC shielding design (ground planes, ferrite beads), compliance with EN 61000 series | Interference resistance in noisy industrial fields |
| Testing Service | PCBA Testing | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| Certification | RoHS, REACH, UL 94V-0 (flame retardant), CE, ISO 9001 | Safety and environmental standards |
(2) Customization Services
| Customizable Aspects | Options & Capabilities | Customer Value Proposition |
| Material & Layer Design | – High-temperature materials (PTFE, Rogers) for aerospace/energy applications- Multi-layer stackup optimization for signal integrity | Tailored to unique environmental or performance needs |
| Special Surface Finishes | – Gold finger for pluggable connectors- ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) for high-reliability contacts | Enhanced durability for frequent connection/disconnection |
| Thermal Management Solutions | – Embedded heat sinks- Vias array for thermal conduction- Metal core PCB integration | Prevent overheating in high-power remote control systems |
| Mechanical & Environmental Adaptation | – Conformal coating (UV-cured, silicone, parylene) for moisture/dust protection- Stiffener plates for vibration resistance | Customized for harsh industrial environments (e.g., construction, marine) |
| Functional Integration | – On-board wireless modules (2.4GHz, 433MHz, LoRa) pre-installed- Safety circuits (overcurrent/overvoltage protection) | Turnkey solutions reducing development time |
| Size & Shape | – Non-standard shapes (cutouts, slots) for equipment installation- Miniaturized designs (down to 30x20mm) | Perfect fit for compact industrial devices |
Service Commitment
- Technical Support: Dedicated engineering team for DFM (Design for Manufacturing) consultation and PCB layout optimization.
- Rapid Prototyping: 3-7 days for sample production (urgent orders available).
- Volume Production: ISO-certified manufacturing lines ensuring consistency from prototype to mass production.
Why Choose Ring PCB for Industrial Control PCBA?
At Ring PCB, we don’t just manufacture products — we deliver reliable industrial solutions.
With complete PCB fabrication, PCB assembly, and turnkey PCBA services, we help customers reduce cost, shorten lead time, and improve product stability.
18 Years of Excellence | Self-Owned Factory | End-to-End Technical Support
Core Advantage 1: Advanced Engineering for Precision PCB Manufacturing
-
High-density stack-up: 2–48 layers, blind & buried vias
-
Minimum trace/spacing: 3/3 mil, impedance tolerance ±7%
-
Ideal for industrial control, medical devices, automotive electronics, and 5G applications
-
IPC-6012 Class 3 manufacturing standards
Core Advantage 2: Integrated PCBA Services | One-Stop Turnkey Solutions
✓ PCB fabrication + component sourcing + SMT assembly + functional testing
✓ DFM / DFA optimization to reduce design risks and BOM costs
✓ AOI, X-ray inspection, and 100% functional testing
oplus_0
Core Advantage 3: Self-Owned Factory with Full Supply Chain Control
✓ Vertical integration from raw materials to final testing
✓ Triple quality assurance: AOI + impedance testing + thermal cycling
✓ Defect rate < 0.2% (industry average <1%)
✓ Certifications: ISO9001, IATF16949, RoHS
Contact Us
We provide OEM custom processing, all-around EMS electronic manufacturing and full turnkey PCB assembly service for FR-4 industrial device circuit boards, backed by our reliable quick turn manufacturing system for both small prototypes and large mass batches. Reach out to us with your design documents to unlock one-stop industrial PCBA manufacturing support and favorable pricing.
Email: rfq@ringpcb.com
Website: https://www.ringpcb.com
