High Reliability Industrial Control PCBA with fast PCB prototyping and SMT assembly

Product Overview

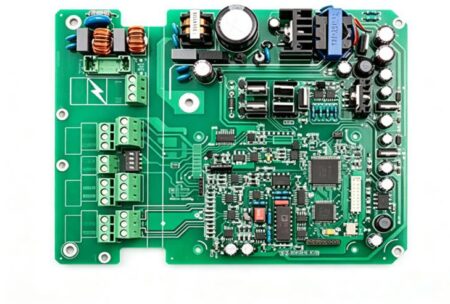

Industrial Control PCBA is the core control unit for factory automation and industrial machinery. Unlike consumer-grade circuit boards, this 220V AC motor driver PCBA is engineered for continuous high-load operation, harsh workshop conditions, and stable long-term performance. It integrates power conversion, MCU control, multi-channel signal terminals, and full protection circuits, widely used in industrial motor drives, automated production lines, pumps, and fan control systems. Ring PCB provides customized industrial control PCBA prototyping, SMT/THT assembly, component sourcing, and full-turnkey manufacturing services.

Core Features

Industrial-Grade Environmental Resistance Built with high-Tg FR-4 substrate and industrial components, the PCBA supports a wide temperature range of -40°C to 85°C. It resists vibration, humidity, dust, and thermal cycling, ensuring stable 24/7 operation in harsh factory environments.

Strong EMC Anti-Interference Performance Equipped with 220V AC input and built-in EMI filter circuits, the board effectively suppresses industrial electromagnetic noise. Strict isolation between power circuits and signal circuits guarantees precise signal transmission in complex automation scenarios.

Multi-Layer Safety Protection Integrated over-current, over-voltage, short-circuit, and overload protection mechanisms. It automatically cuts off abnormal circuits to prevent equipment damage and reduce industrial operation risks.

High-Precision Mixed Assembly Adopts professional SMT + THT mixed assembly. All finished boards undergo AOI, X-ray, ICT, and functional testing to eliminate soldering defects and ensure high yield and reliability.

Flexible Customization & Compatibility Fully customizable based on Gerber files and BOM lists in terms of circuit layout, interface definition, and functional modules. Compatible with PLC systems, industrial sensors, and automated mechanical equipment.

Key Advantages

Ultra-High Reliability & Low Maintenance Cost Manufactured with industrial-standard materials and processes, avoiding common issues such as signal drift, aging, and frequent failure of civilian PCBA. It effectively reduces equipment downtime and after-sales maintenance costs.

Consistent Batch Quality & Long Service Life Stable component supply and standardized production processes ensure excellent batch consistency, matching the 10+ year service life requirements of industrial automation equipment.

Fast Turnaround & Full-Cycle Support Supports 3-day rapid prototyping, small-batch trial production, and large-scale mass production, perfectly adapting to customer R&D verification and mass launch cycles.

One-Stop Full-Turnkey Service Ring PCB covers PCB fabrication, component procurement, precision assembly, and full functional testing. Customers can complete the entire PCBA project with one supplier, simplifying the supply chain and improving efficiency.

Technical Parameters

Item	Specification
Input Voltage	220V AC Industrial Mains
Application	Industrial Automation, Motor Drive, Machinery Control
PCB Material	High Tg Industrial FR-4
Surface Finish	ENIG / HASL / OSP (Optional)
Assembly Type	SMT + THT Mixed Assembly
Working Temperature	-40℃ ~ 85℃
Testing Standard	AOI, X-ray, ICT, Functional Test
Prototype Lead Time	3 Working Days

Applications

Industrial control PCBA is widely applied in automated production lines, industrial motor drive systems, fan and pump control, mechanical automation equipment, PLC peripheral modules, and industrial intelligent monitoring devices.

Why Choose Ring PCB?

To deliver consistent, high-quality results for every custom PCB assembly project, Ring PCB supports clients with full in-house manufacturing strength and responsive service:

• 18+ Years of Global Expertise – Founded in 2008, we have served 3,000+ clients across 50+ countries with deep knowledge of global industrial standards.
• Self-Owned Full-Process Factory – 10,000 ㎡ in-house facility with 500 skilled staff; all PCB & PCBA production completed under one roof, no third-party outsourcing.
• Scalable Production Capacity – 50,000 ㎡ bare PCBs / 500 PCBA projects monthly output; high-multilayer boards up to 62 layers, from rapid prototyping to mass production.
• Full International Certifications – ISO 9001, ISO 14001, ISO 13485, IATF 16949, UL and RoHS compliant for global market access.
• 24/7 One-Stop Support – End-to-end PCB & PCBA service with round-the-clock production and cross-timezone engineering support.

FAQ

Q1: Do you provide custom industrial control PCBA for different industrial applications?

A: Yes. As an experienced printed circuit board manufacturer, we offer custom PCB assembly solutions for various industrial scenarios, including factory automation, power control, industrial communication, IoT gateways and more.

Q2: What is included in your One-Stop PCB & PCBA service?

A: Our one-stop solution covers bare PCB fabrication, electronic component sourcing from authorized channels, SMT/DIP assembly, AOI/X-ray inspection, functional testing and final packaging. You only need to communicate with one point of contact for the entire project.

Q3: What is your production capacity for industrial control PCBA projects?

A: Our monthly production capacity reaches 50,000 ㎡ of bare printed circuit boards and up to 500 PCBA projects, supporting prototype runs, small-batch trials and large-scale mass production.

Q4: What certifications do you have for industrial electronics manufacturing?

A: We hold full management system certifications including ISO 9001, IATF 16949, ISO 13485 and ISO 14001 (issued by SGS), as well as UL Recognized and RoHS compliance, meeting global industrial regulatory requirements.

Ready to start your custom industrial control PCBA project? Send your Gerber files and BOM list to us for a free DFM assessment and competitive quotation.

Email： rfq@ringpcb.com
